Tile RFID Reference
Here you can find the RFID tags to all tiles: Complete List of all Tiles' RFID

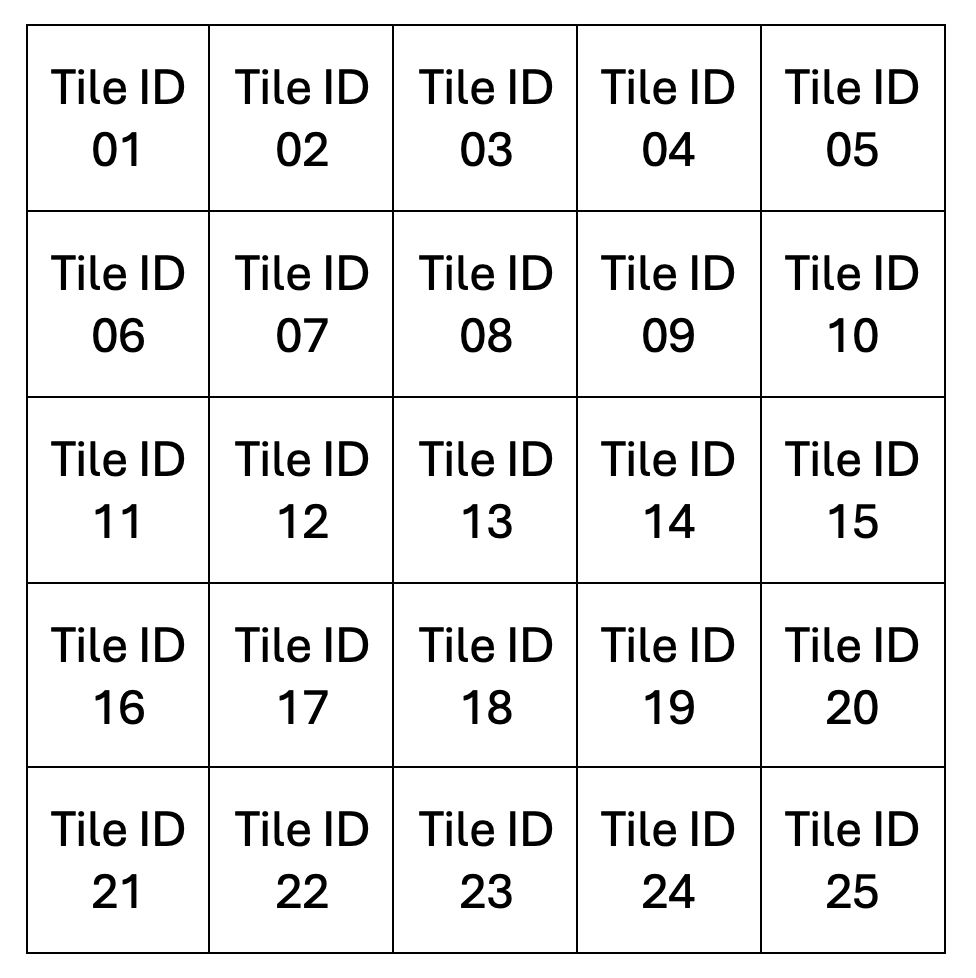

The final demo arena consists of 5*5 = 25 Tiles with the Tile Board IDs showing below:
Following the same numbering scheme, the testing field consists of 2*5 = 10 Tiles with the Tile Board IDs from 26 to 35.

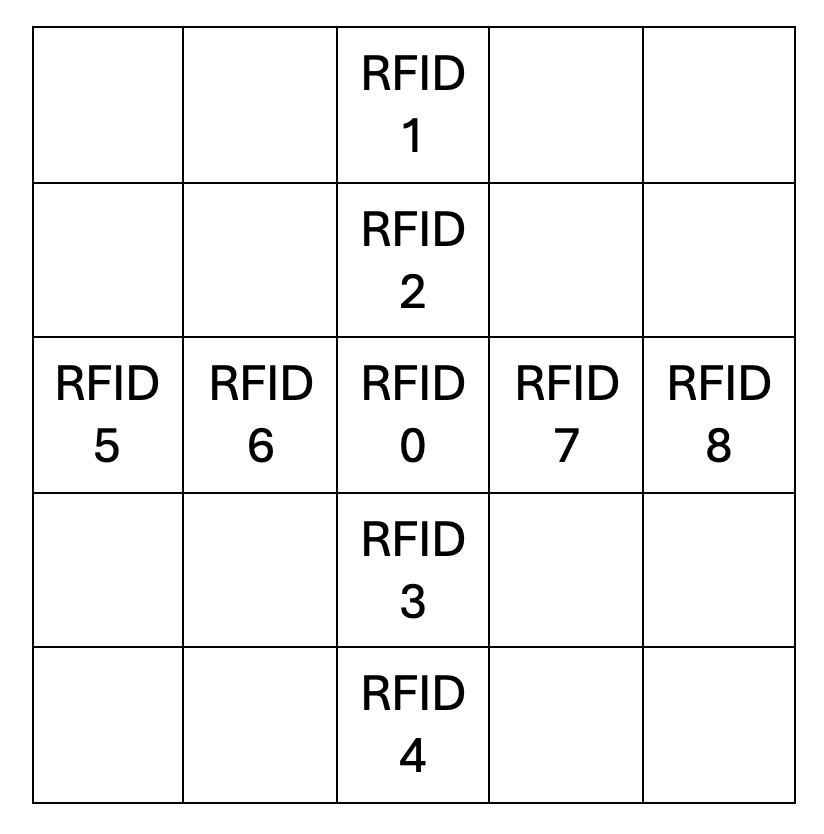

Each tile consists of 9 RFIDs with the indices showing below:
- 0 as the center RFID
- 1 and 2 for UP direction
- 3 and 4 for DOWN direction
- 5 and 6 for LEFT direction
- 7 and 8 for RIGHT direction
