Map Layout

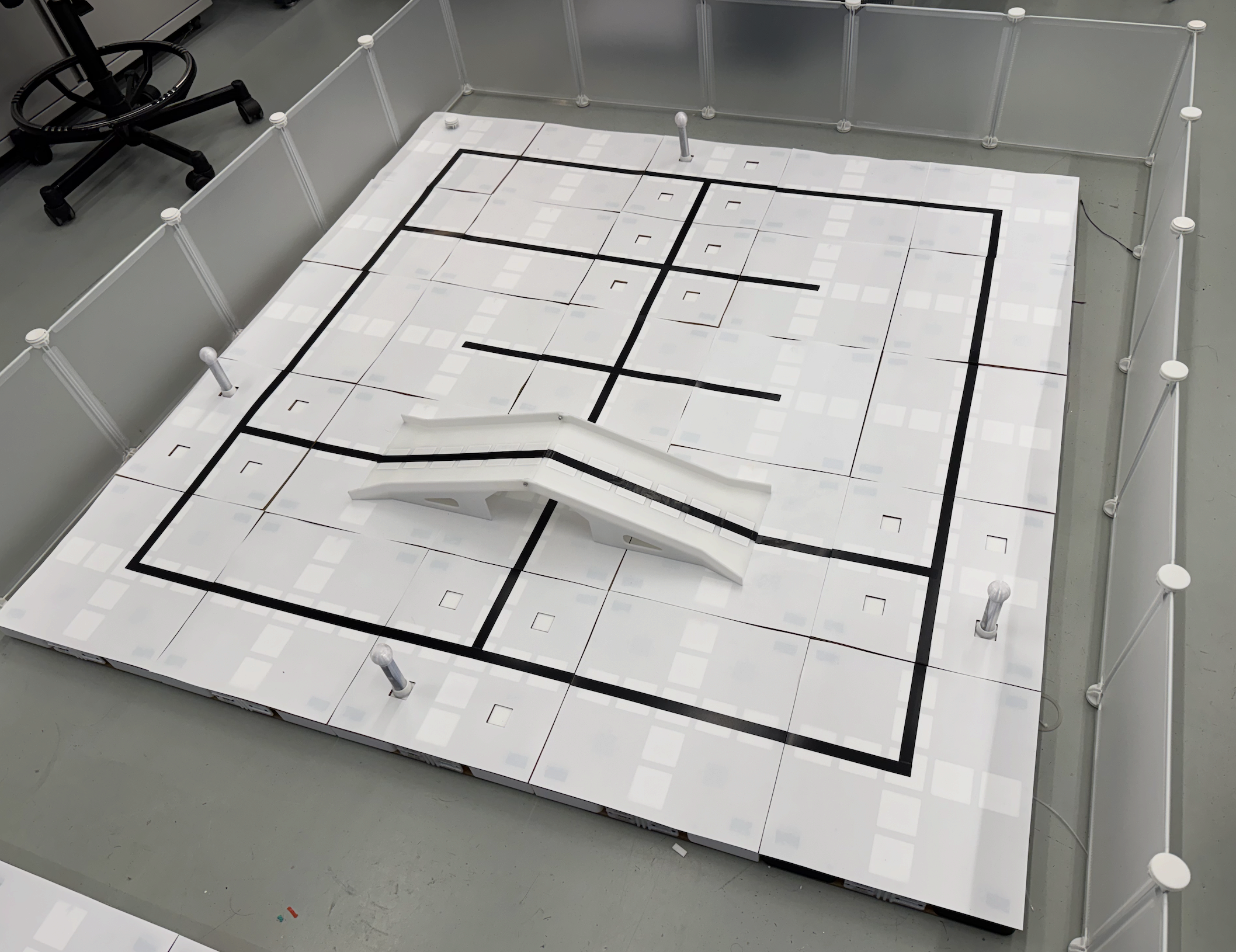

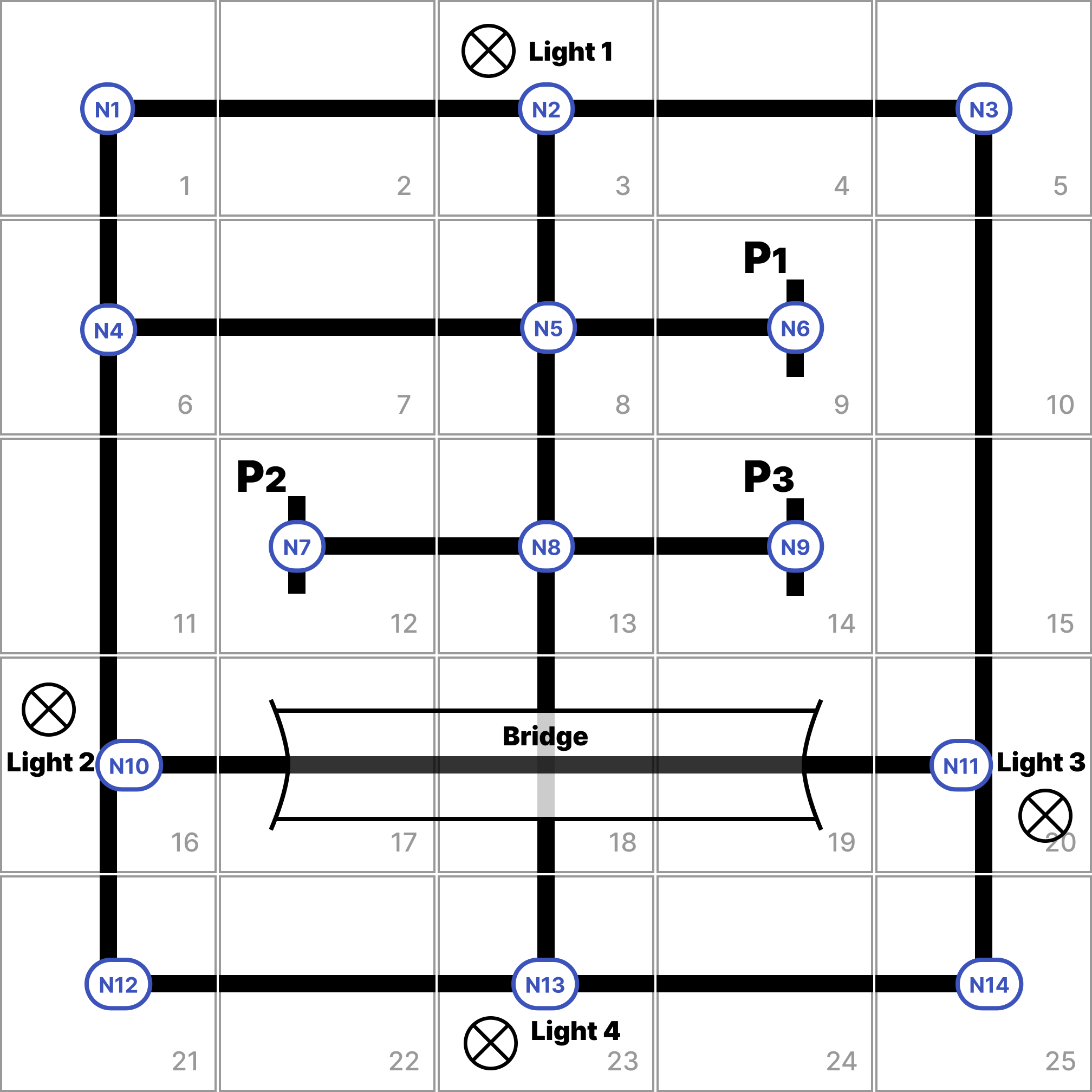

Map Layout for Final Project Arena

final project arena

final project arena

  • For tile board RFID information, please refer to Board IDs from 1 - 25
  • For traffic light information, please use traffic light IDs 1 - 4
  • The 3 parking slots have been labelled with IDs 1 - 3. You should park the car accordingly to the parking slot at the given end point.

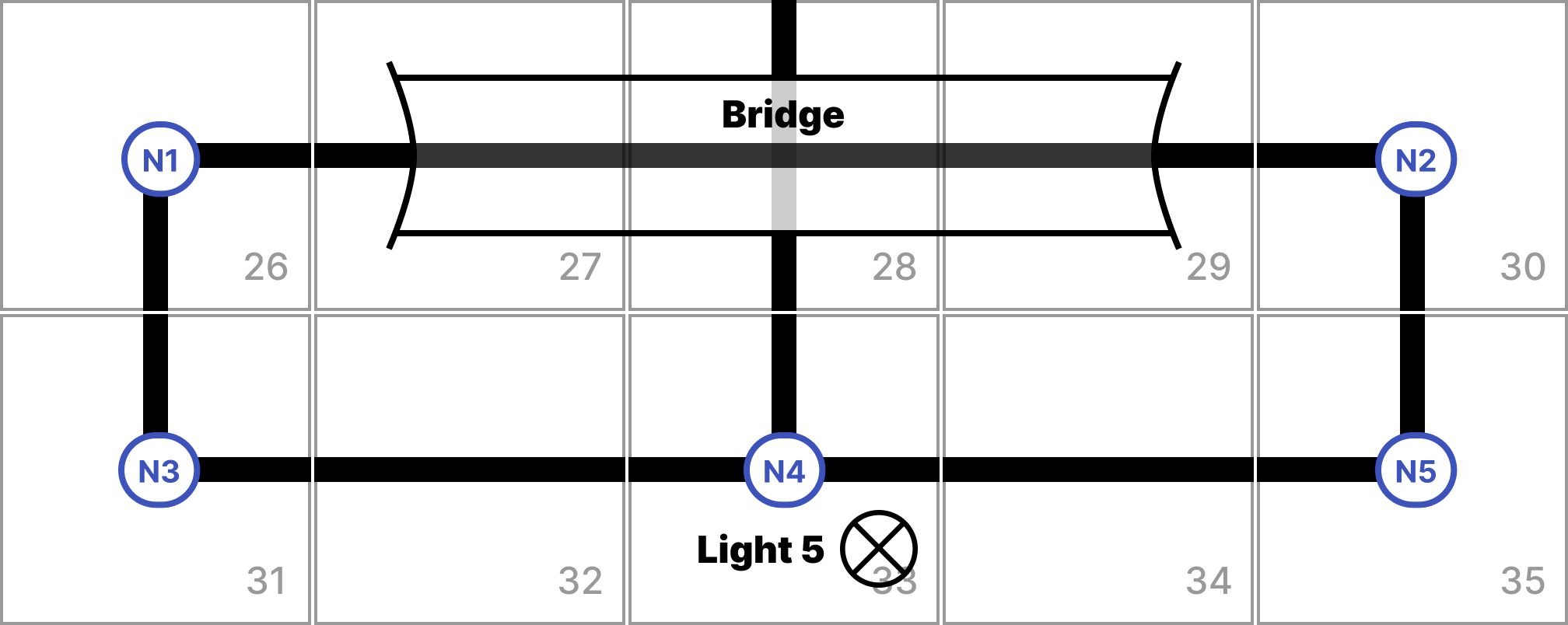

Map Layout for Testing Field

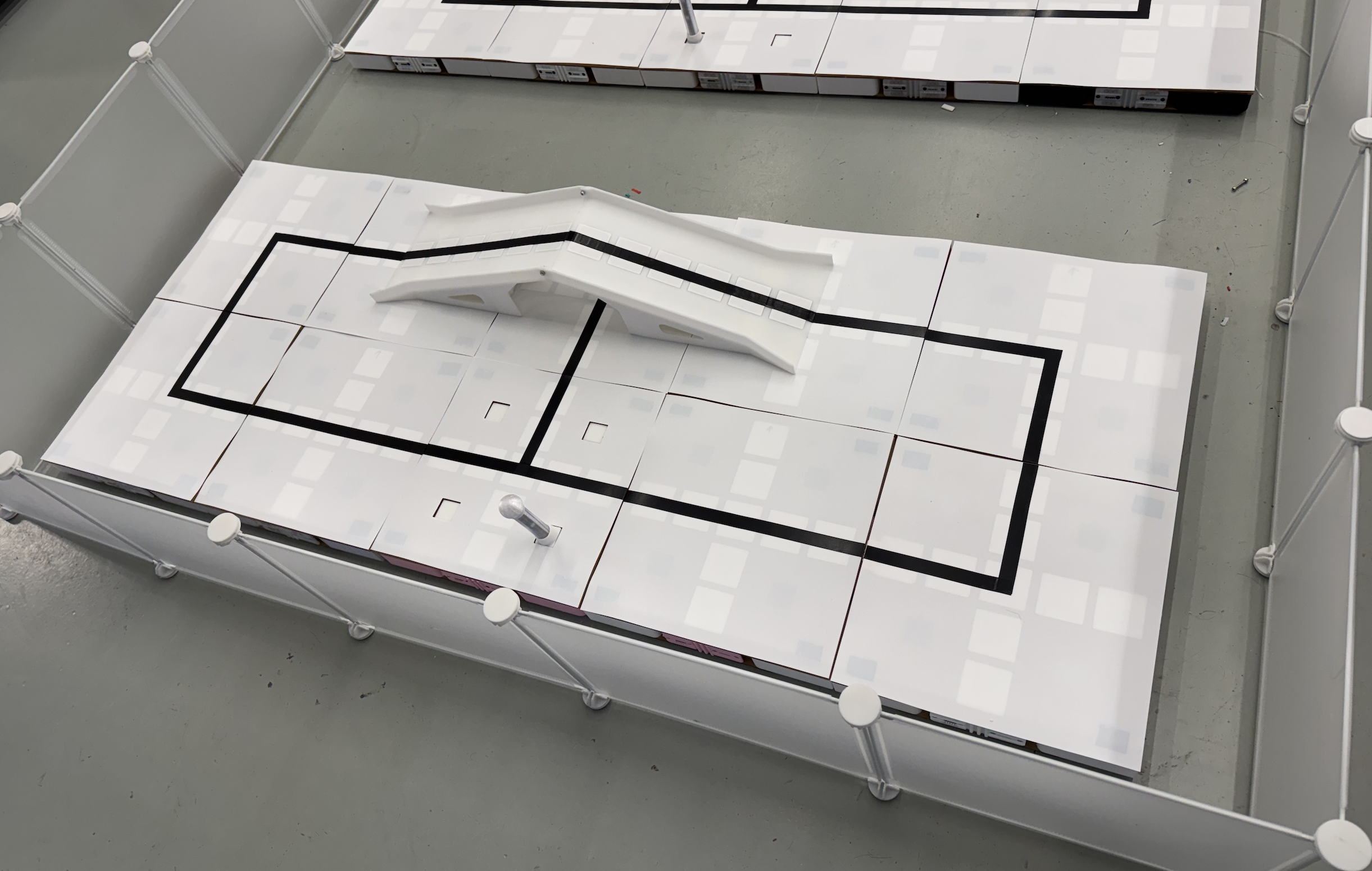

testing field testing field reality

  • For tile board RFID information, please refer to Board IDs from 26 - 35
  • For traffic light information, please use traffic light ID 5

Notice

  • You may walk on the pathway between the two fields to retrieve your car during testing, but do not step on the fields or remove the fences around the fields.
  • Also, please do not remove any tiles and make sure they are properly connected to each other.
