Welcome to the ISDN2602 Final Project Website

Changelog

[2025-11-28] Add Shortest Path Computation and Additional Reminders Sections

[2025-11-22] Update Control Panel Section

To include Traffic Light System Control and Timer Control note.

[2025-11-21] RFID Task

Change 1 - In files CodeWithFirebase/CodeWithFirebase.ino and CodeWithoutFireBase/CodeWithoutFireBase.ino at lines 363 and 372, modify the RFID tag reader task to store the current tag UID in a global variable:

/*-------------RFID Tag Reader Task-------------*/
TaskHandle_t RFIDTagReaderTaskHandle = NULL;
StaticTask_t xRFIDTagReaderTCB;
+ String currenttagUID = "";
void RFIDTagReaderTask(void* pvPara) {
  while (true) {
    // If no new card or read failed, wait and continue
    if (!RFIDReader::mfrc522.PICC_IsNewCardPresent() || !RFIDReader::mfrc522.PICC_ReadCardSerial()) {
      vTaskDelay(pdMS_TO_TICKS(50));
      continue;
    }

-   String currenttagUID = RFIDReader::GetTagUID();
+   currenttagUID = RFIDReader::GetTagUID();

Change 2 - In files CodeWithFirebase/RFIDReader.cpp and CodeWithoutFirebase/RFIDReader.cpp at line 9, set the RFID antenna gain to maximum for better reading range:

  // Initialize RFID
  Wire.begin(Pinout::RFID_SDA, Pinout::RFID_SCL);
  mfrc522.PCD_Init();
+ mfrc522.PCD_SetAntennaGain(mfrc522.RxGain_max);
  Serial.println("RFID Initialized");

Change 3 - In files CodeWithFirebase/CodeWithFirebase.ino and CodeWithoutFireBase/CodeWithoutFireBase.ino, please move the RFIDTagReaderTask definition above the MovementTask, so that the currenttagUID variable can be accessed in the MovementTask:

That is to move the entire RFIDTagReaderTask code block up to be before the MovementTask code block, like so:

+ /*-------------RFID Tag Reader Task-------------*/
+ TaskHandle_t RFIDTagReaderTaskHandle = NULL;
+ StaticTask_t xRFIDTagReaderTCB;
+ String currenttagUID = "";
+ void RFIDTagReaderTask(void* pvPara) {
+   // ...
+ }

/*-------------LED Blinking Task-------------*/
TaskHandle_t LEDBlinkingTaskHandle = NULL;
StaticTask_t xLEDBlinkingTCB;
void LEDBlinkingTask(void* pvPara) {
 // ...
};

TaskHandle_t MovementTaskHandle = NULL;
StaticTask_t xMovementTCB;
void MovementTask(void* pvPara) {
    // ...
}

- /*-------------RFID Tag Reader Task-------------*/
- TaskHandle_t RFIDTagReaderTaskHandle = NULL;
- StaticTask_t xRFIDTagReaderTCB;
- String currenttagUID = "";
- void RFIDTagReaderTask(void* pvPara) {
-   // ...
- }

[2025-11-19 8:10 PM] Servo and RFID Fixes

In files CodeWithFirebase/CodeWithFirebase.ino and CodeWithoutFireBase/CodeWithoutFireBase.ino at line 377 to increase the delay time for RFID tag reading:

void RFIDTagReaderTask(void* pvPara) {
    while (true) {
        // ...
-       vTaskDelay(pdMS_TO_TICKS(10));
+       vTaskDelay(500/portTICK_PERIOD_MS);
    }
}

In files CodeWithFirebase/MotorControl.hpp and CodeWithoutFireBase/MotorControl.hpp at lines 28 and 30 to modify the PWM resolution and channel for the servo motor:

struct ServoMotor
{
    const uint8_t PWMFrequency = 50; // PWM must be in 50Hz
-   const uint8_t PWMResolution = 12;
+   const uint8_t PWMResolution = 10;
    uint16_t PWMDuty = 0;
-   const uint8_t PWMChannel = 8; // Ideally select between 5-10
+   const uint8_t PWMChannel = 6; // Ideally select between 5-10
    float TargetAngle = 0.0f;
};

[2025-11-18 7:35 PM] Ultrasonic Sensor Pin Change

In files CodeWithFirebase/Pinout.hpp and CodeWithoutFireBase/Pinout.hpp at lines 20 and 21, the ultrasonic sensor pins have been changed as follows:

// Ultrasonic Sensor
- const uint8_t UltrasonicTrigPin = 6;
+ const uint8_t UltrasonicTrigPin = 39;
- const uint8_t UltrasonicEchoPin = 4;
+ const uint8_t UltrasonicEchoPin = 38;

[2025-11-18] Release of Final Project

Notes

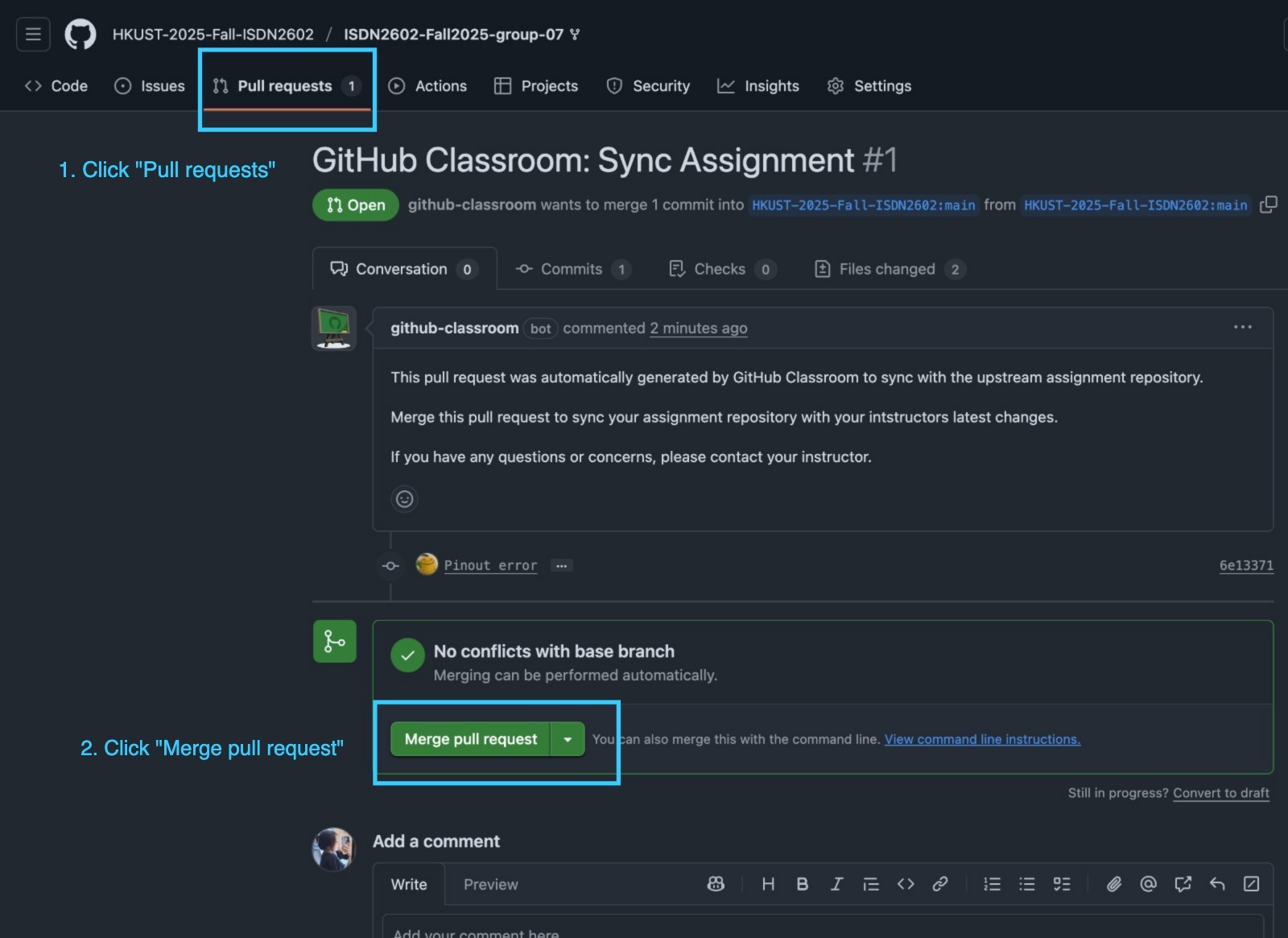

If you have already cloned the repository, you will receive a pull request with the updated changes, please refer to the image below to accept and merge the changes. Or you may choose to manually update the code that have been changed.
